Name: Laguna Altura (PA 18)
Company: Irvine Community Development Company, LLC
Project Location:

The Village of Laguna Altura is located off of SR-133 and I-405 in the City of Irvine.

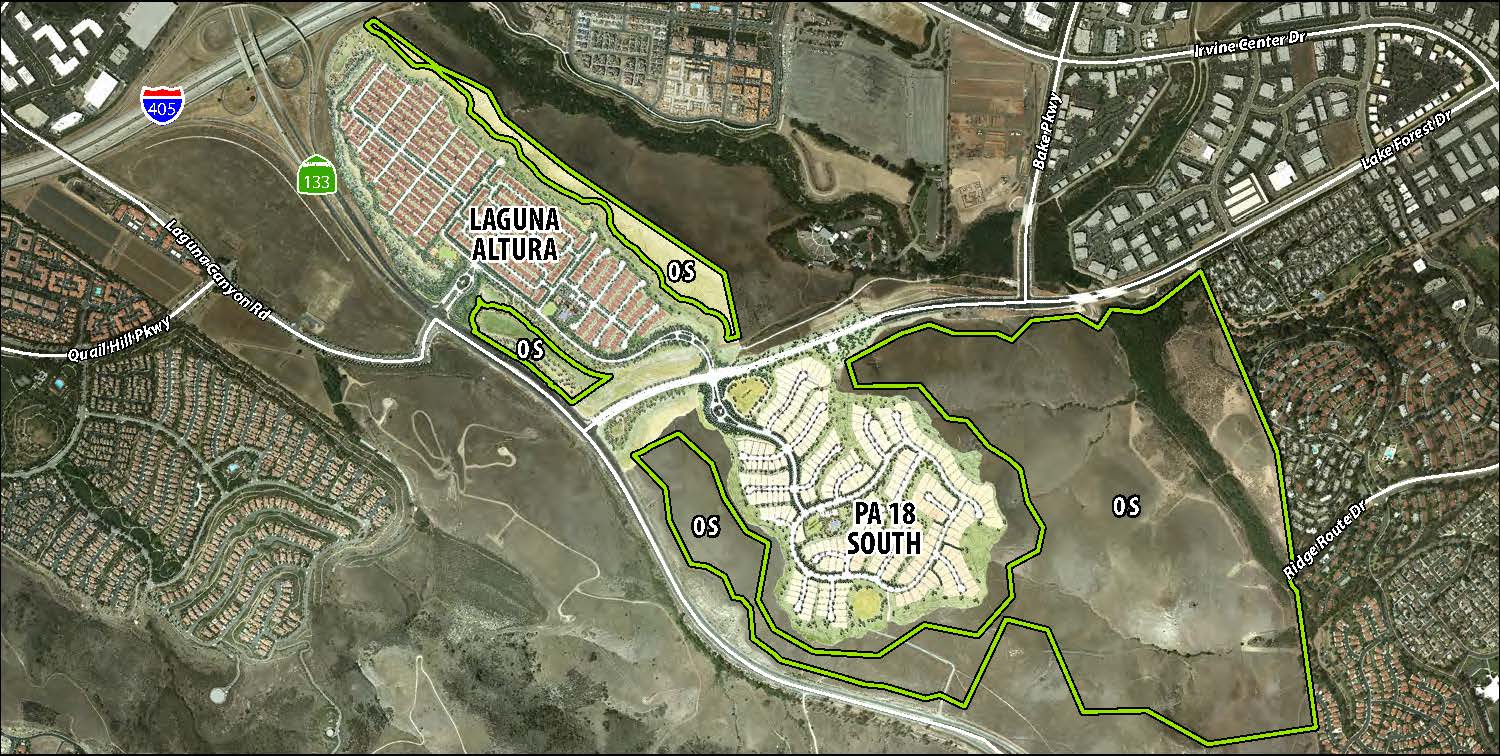

Project Photo:
Image has been re-sized. Click for original size.
Project Description:

The Village of Laguna Altura (PA 18) is a landmark coastal canyon village designed and developed by the Irvine Company. It is located in the master-planned City of Irvine just minutes away from Laguna Beach. The exclusive gated village comprises four luxury neighborhoods.

After careful planning a site plan was developed that took into account in depth market research and analysis, engineering constraints and environmental sensitivities.

Environmental and conservation features were incorporated into the project.  Approximately 450 acres in Planning Area 18 was dedicated as open space to the City of Irvine as part of the Open Space Initiative.

Storm drainage and water quality basins were integrated into the site plan.  The on-site drainage is directed to three basins.  Runoff is treated in these basins prior to discharging into the San Diego Creek.

In keeping with a comprehensive approach to landscaping, ICDC created a landscape palette of trees, plants and groundcovers. Collectively, they enhance Laguna Altura’s overall ambience and appeal, control temperature, and help improve air quality.

Sensitive restricted wildlife habitat areas are located near and around the project site and planning area, which required several state and federal regulatory ggencies permits. The environmentally sensitive areas and endangered species were carefully considered in many aspects of the design and construction of the project including the installation of a wildlife crossing which promoted wildlife movement.







Project Justification:

PROJECT JUSTIFICATION: CHALLENGES , CONSTRAINTS AND OBSTACLES OVERCOME

The Laguna Altura (PA-18) project presented numerous complex constraints which required a tremendous amount of collaborative work among numerous professional disciplines to achieve design and construction goals while meeting ambitious construction schedules and deadlines. The project challenged the project team to develop and implement engineering design solutions, to offer cooperation and compromise during the extensive permitting process and to provide quality construction methods which resulted in the project’s completion on schedule and on budget.

Time Constraints included a 14-month construction schedule (excluding homes). Approximately 150 construction permits were issued for the work prior to construction.

66 KV UTILITY UNDERGROUNDING

The design and construction of the undergrounding of existing 66kV electrical power lines. This involved coordination with SCE and several agencies.  Work was completed prior to grand opening of project.

OPEN SPACE DEDICATION

Approximately 450 acres of Open Space dedicated as part of the City of Irvine Open Space Program including Veeh Creek, natural hillsides to the west expanding the previously dedicated open space in the Laguna Canyon corridor and providing trail linkages.

100 acres Needle grass Mitigation (Restoration) and other environmental mitigation was required for the project.

MAJOR ROADWAY INFRASTRUCTURE

Construction of Lake Forest Drive from Laguna Canyon Road to Bake Parkway
Construction of SR 133 widening along the project frontage

GRADING

Estimated Total Volume of Earthwork was approximately 8,000,000 CY

WATER LINE RELOCATIONS

A large existing recycled water line was relocated due to the project improvements.

ADDITIONAL INFORMATION

The success of the project was a collaborative team effort. The team included several groups within Irvine Community Development Company, public agencies, consultants, and contractors.



Special Circumstances:

Special relationships generated and thanks to:

AGENCIES

• The City of Irvine, lead agency
• Irvine Ranch Water District
• Southern California Edison
• The Gas Company
• AT&T
• Cox Communications
• Laguna Beach Water District
• Tri-Cities Water District (for water line relocations in Lake Forest Drive)
• U.S. Army Corps of Engineers
• California Department of Fish and Game
• Cal Trans

CONSULTANTS

• Hunsaker, who served as master engineer for the project
• RBF Consulting (State Route-133 Widening)
• Stantec (Initial TTM, Engineering Feasibility, SAMP Update)
• VA Consulting (Survey, NTS Basins)
• Adams Streeter (Survey)
• Guida (Survey)
• NMG (Geotechnical Engineering)
• Leighton (Geotechnical Engineering)
• GMU Geotechnical (Geotechnical Engineering)
• Glenn Lukos (Environmental)
• LSA (Environmental)
• AECOM (Landscape and Park Design)
• Butsko Utility (Dry Utility Coordination)
• Nakae Associates (Environmental)
• Wilbert Cho-Structural Engineer for Lake Forest Drive Bridges
• PBSJ (water line relocation)
• Rodney Harmsworth (Environmental)

CONTRACTORS

• Sukut Construction
• Stice Company
• Griffith Company
• Kennedy Pipeline
• Kana Pipeline
• Reed Thomas Company
• KPRS

Project Attachments:

FACTS

• 752-acre total planning area
• 855 homes
• Approximately 450 acres of open space was dedicated as part   of      this project
• PA 18N (597 homes) is sold out
• PA 18S is currently under construction (258 homes)

HISTORY

• Initial Planning started in the 1980’s
• Construction started in 2008
• Models opened in 2011
• All four projects in PA 18N sold out in 2013

Award Citation:

The Laguna Altura (PA-18) project was a landmark coastal canyon village project designed and developed by the Irvine Company. Work included a large hillside grading operation, storm drain including water quality treatment basins (part of NTS system), sanitary sewer, domestic water, reclaimed water, environmental mitigation, SR-133 widening, Lake Forest Drive, SCE transmission undergrounding, large transmission waterline relocations, landscaping, gated entries, and parks.

Suggested Award Summary:

The Laguna Altura (PA-18) project was a landmark coastal canyon village project designed and developed by the Irvine Company.  Laguna Altura is situated in the master-planned City of Irvine, nestled atop the hillsides and just minutes from Laguna Beach.  The project involved design and construction of 855 Mediterranean and Tuscan style homes on a beautiful hillside. The exclusive gated village encompasses the four luxury neighborhoods of Siena, San Remo, Cortona, and Toscana. Work included a large hillside grading operation, storm drain including water quality treatment basins (part of NTS system), sanitary sewer, domestic water, reclaimed water, environmental mitigation, SR-133 widening, Lake Forest Drive, SCE transmission undergrounding, large transmission waterline relocations, landscaping, gated entries, and parks.  The project presented number complex constraints which required a tremendous amount of collaborative work among numerous consultants and agencies to achieve design and construction goals. Work was a collaborative team effort and involved numerous consultants and agencies to make the project a success.



Additional Information

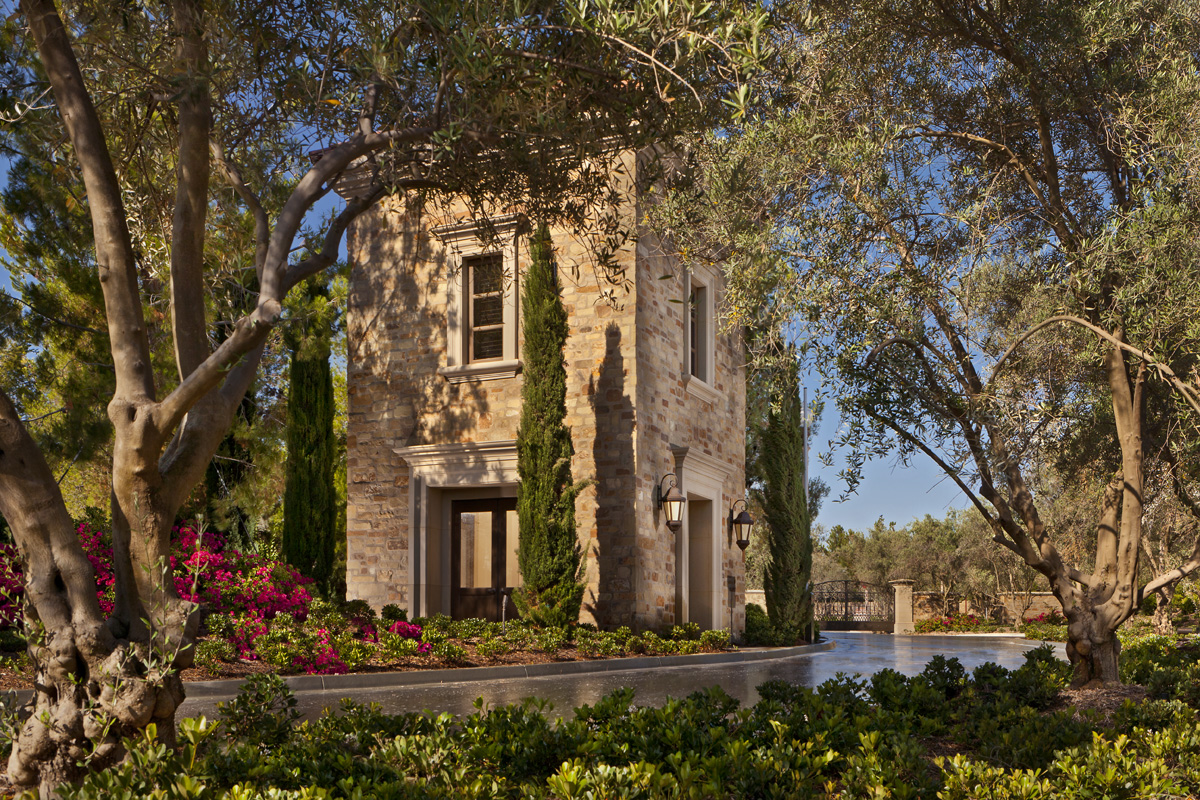

Additional Files: Guard House Entry 1

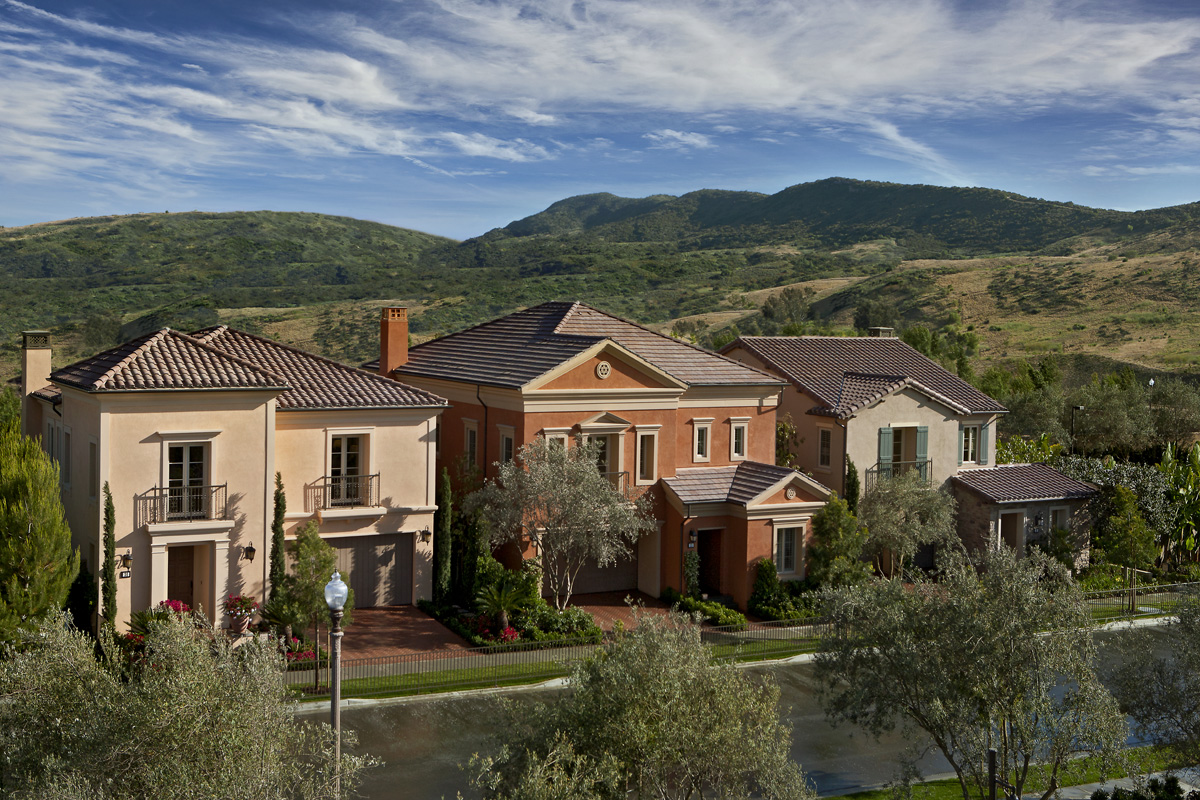

Toscana Street Scene
Guard House Entry 2

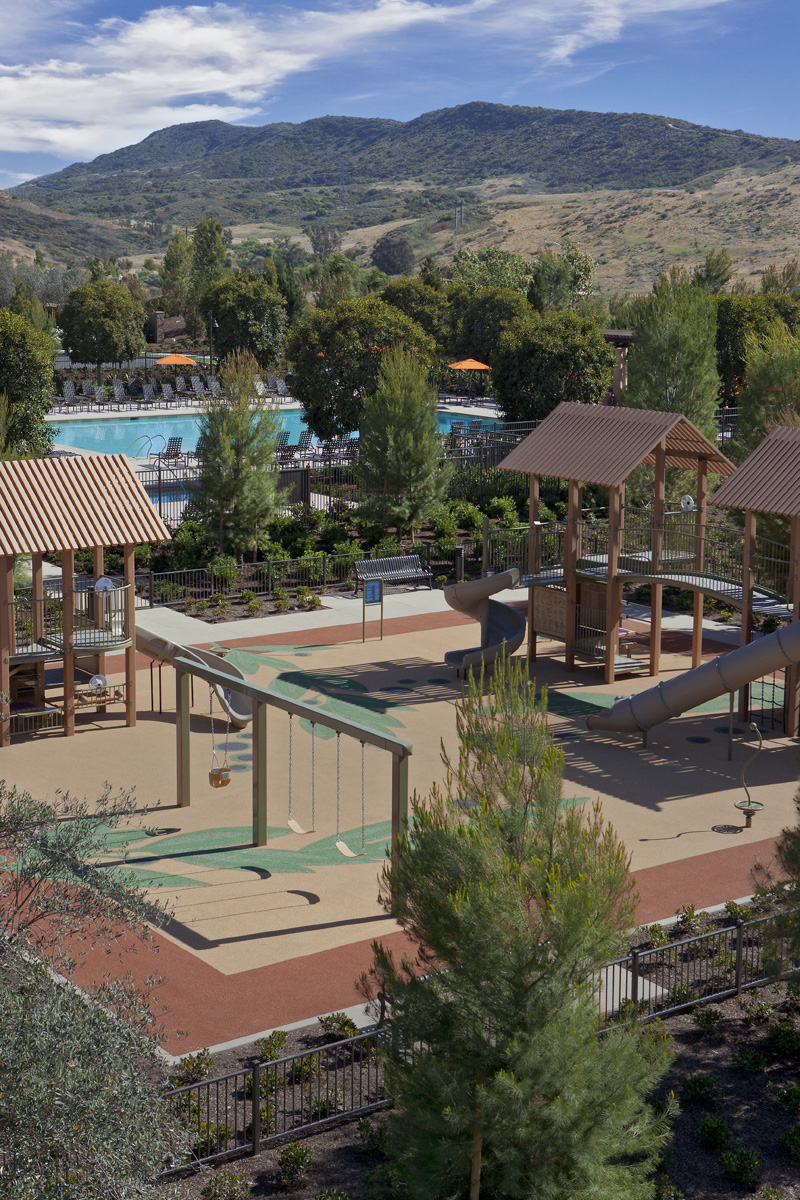

Main Park Totlot 1

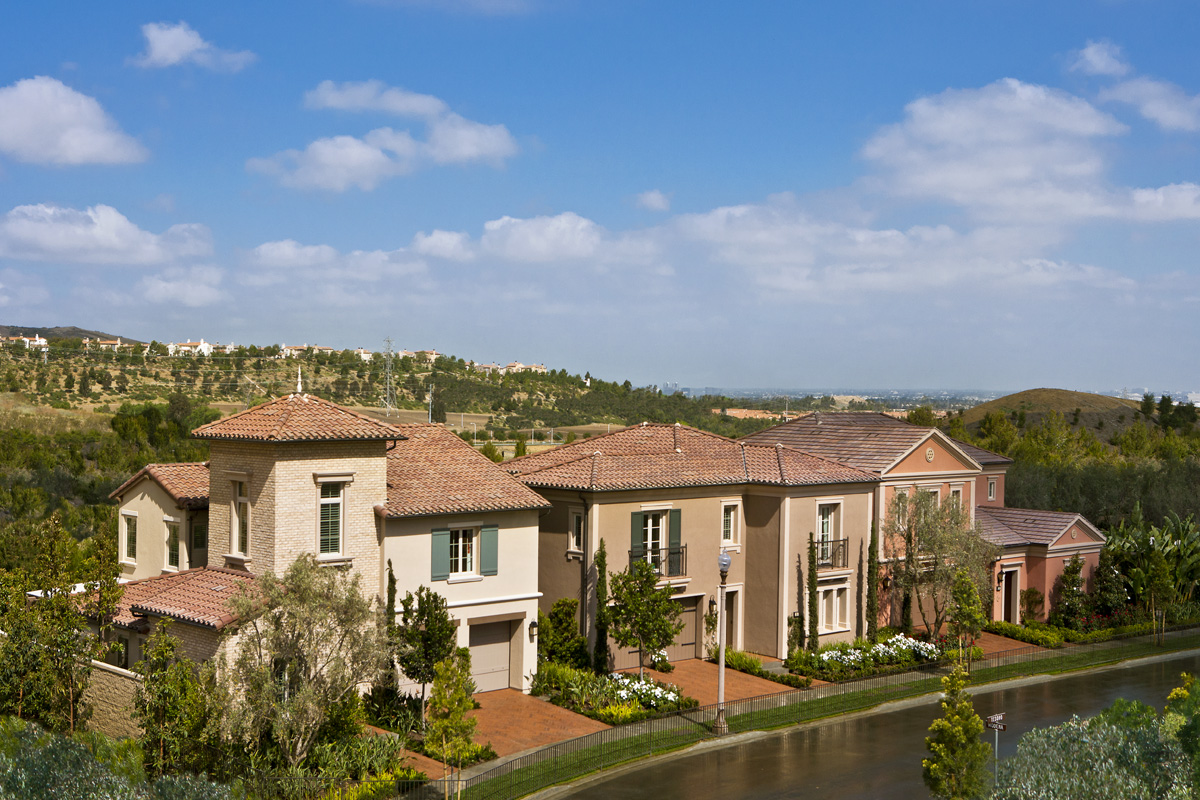

Cortona Street 1

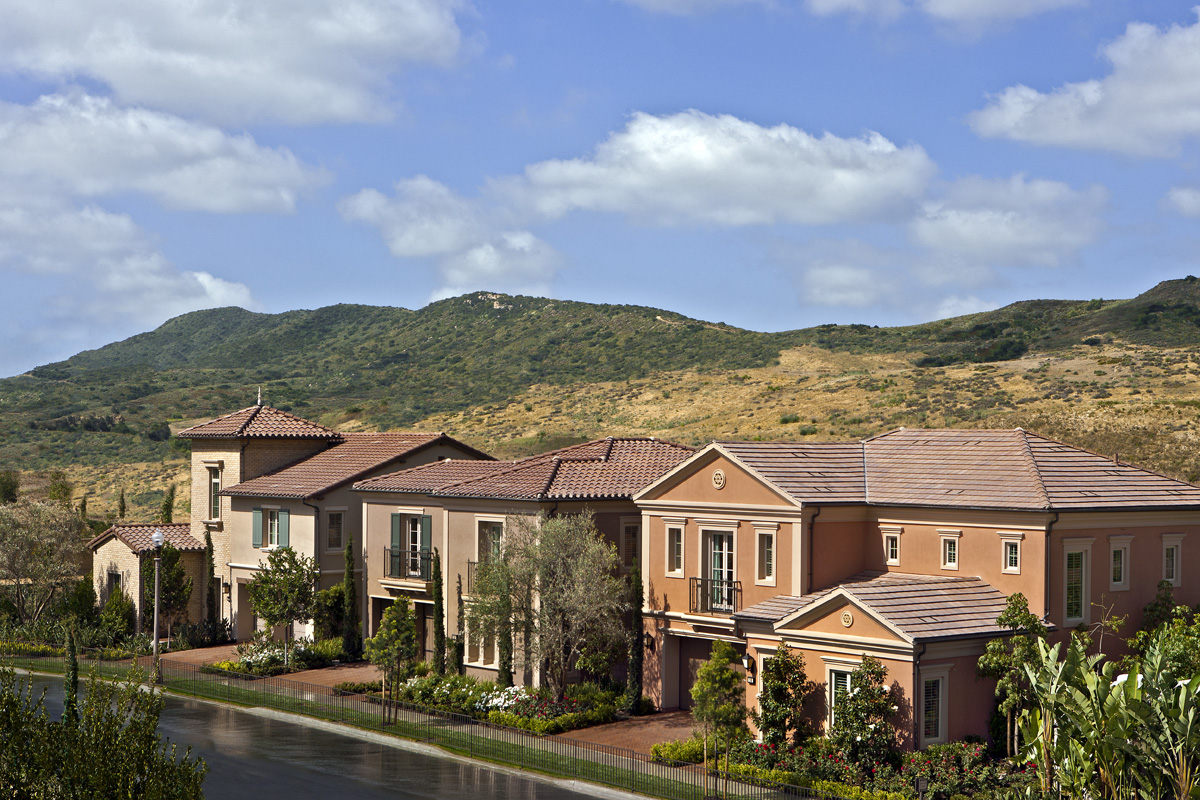

Cortona Street 2
Cortona Street 3

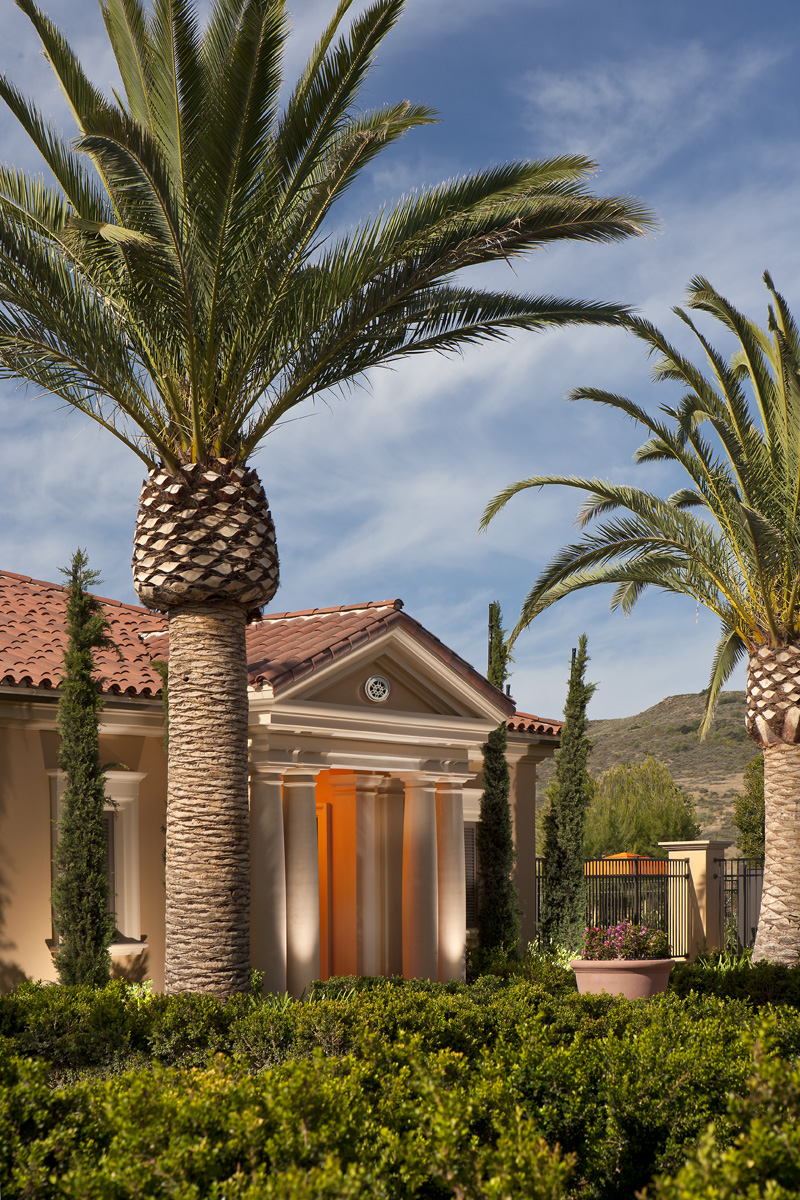

Main Park Architecture 1
Main Park Architecture 2

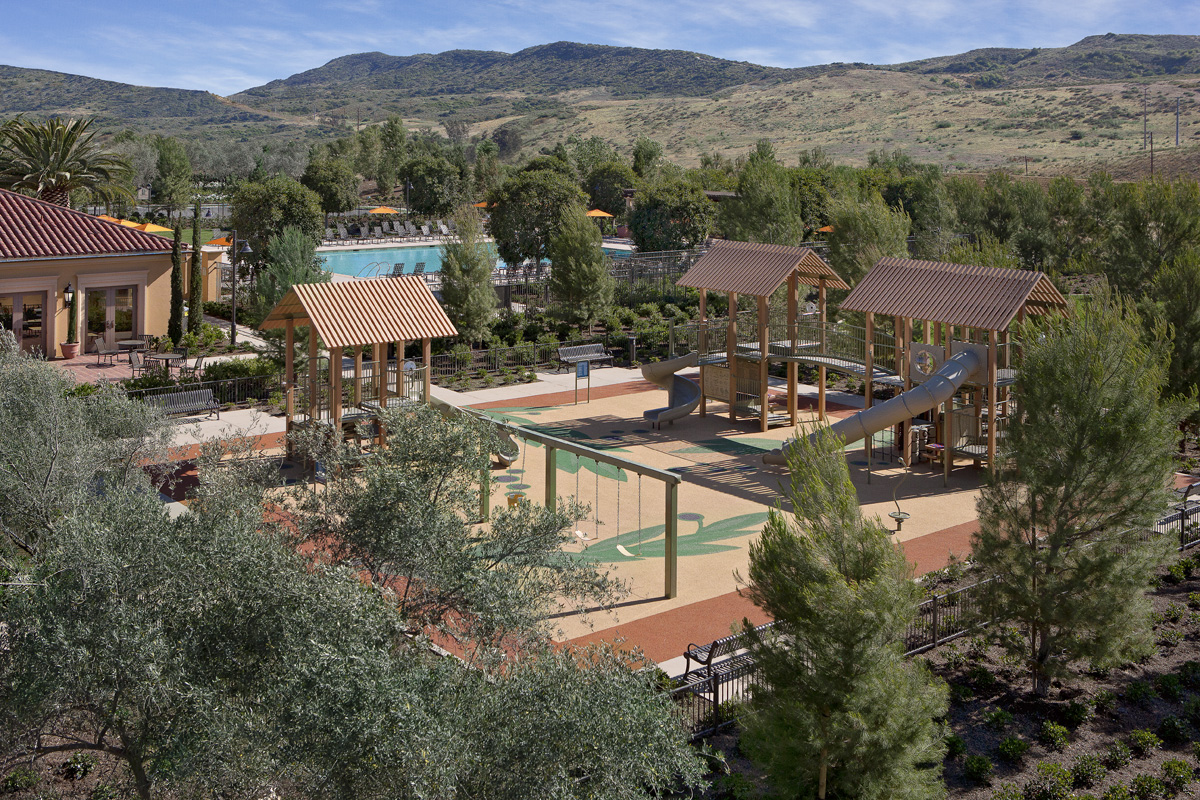

Main Park Totlot 2

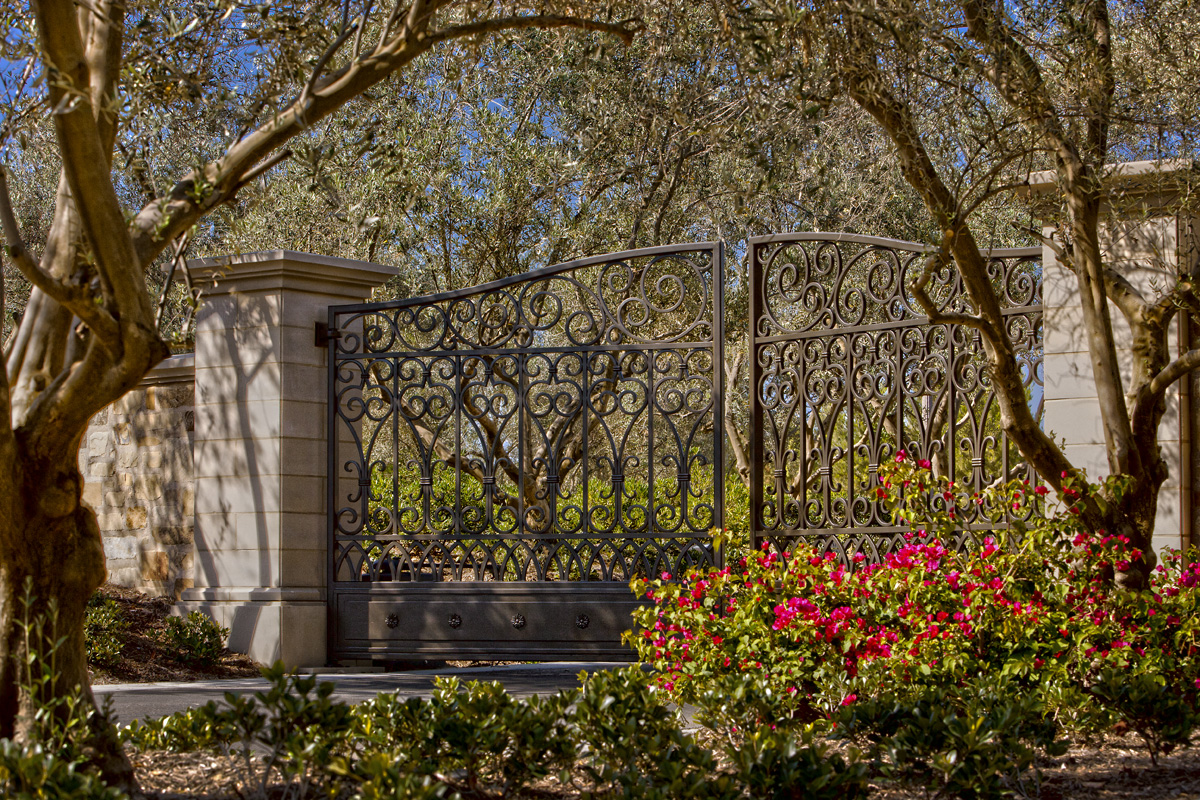

Gate Detail
